Gas Line and Pump Line Heaters

Aluminum Nitride (AlN) Heater Plates

• High-temperature heater up to 1000°C
• Excellent thermal conductivity and uniformity.
• Hard, dense, non-porous, high purity substrate.
• Superior moisture and chemical resistance.
• Excellent size and shape capability.
• Precise, repeatable pattern and distributed wattage.

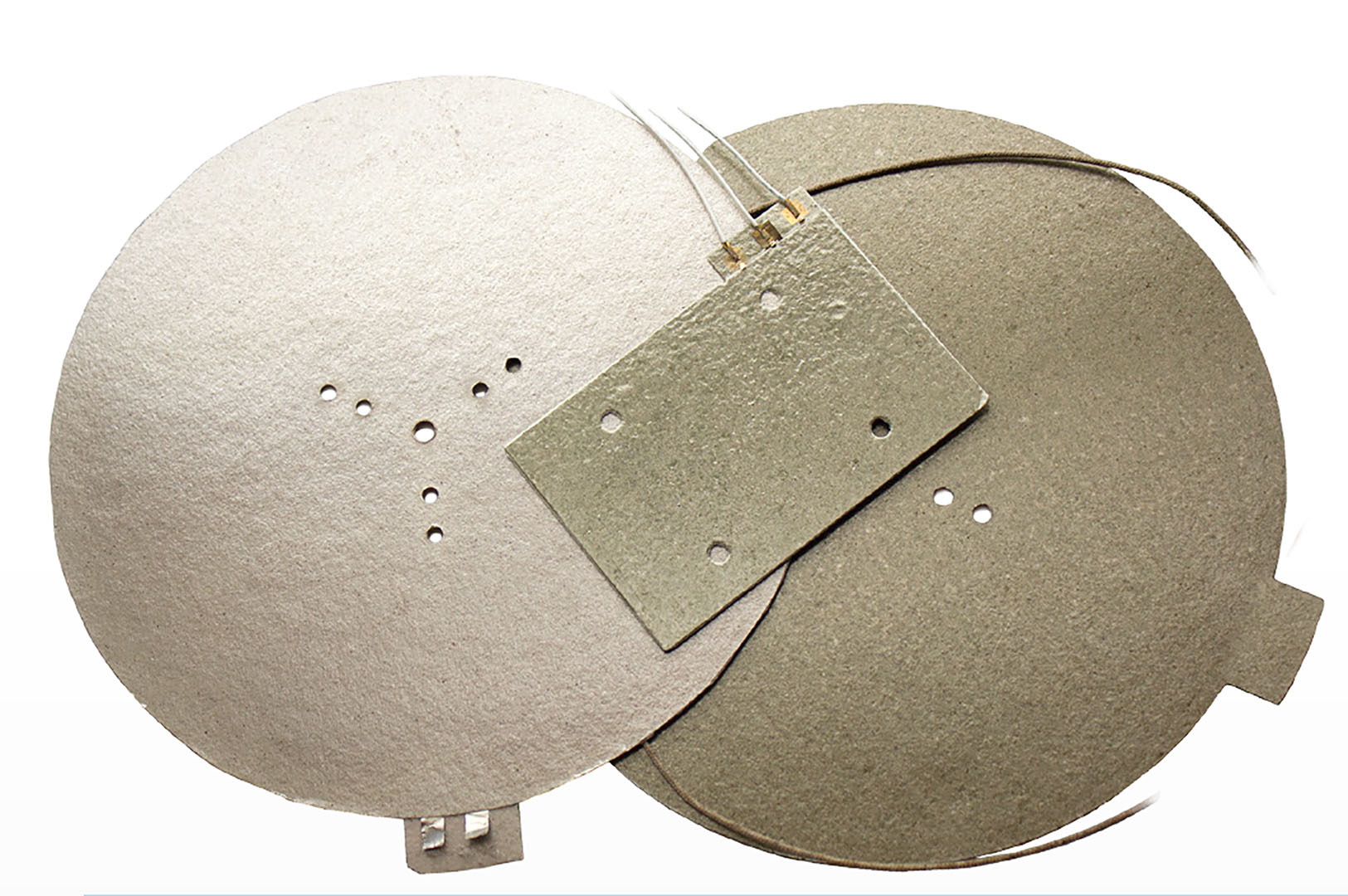

Etched Mica Heaters

Heatron etched mica heaters offer an operating temperature range of -150°C to 500°C. A good choice for larger dimensions, tight traces and high watt density give you a greater level of performance control. Mica heaters are rigid, and have minimal out-gassing after first power up. Mounting holes ensure even application of heat.

• Highest watt density flex heater
• Highest operating temperature flex heater
• Distributed wattage allows for higher watt density at edges
• In-house assembly of leads and attachments available
• Zoned wattage, dual voltage, integrated sensors available

Download Datasheet Pdf, 423 kB.

Silicone Wire Wound Heaters

Rugged. Reliable. Accurate. High-strength fiberglass reinforced silicone rubber gives the wire wound heater dimensional stability without sacrificing flexibility. Moisture and chemical resistant, HEATFLEX can be vulcanized to conform to the contours of irregularly shaped parts, equipping our wire wound heating elements with the exceptional ability to fit over your custom component and follow compound curves.

• High watt densities
• Excellent repeatability
• Better choice for high flex applications
• Flexible heaters adapt to contoured surfaces with ease
• Freeze protection and condensation prevention
• Resistant to many chemicals
• Economically facilitates high resistance applications and heater sizes not lending themselves to the etching process
• Global agency approvals: UL, CSA, TUV on most configurations.

Download Datasheet Pdf, 14 MB.
