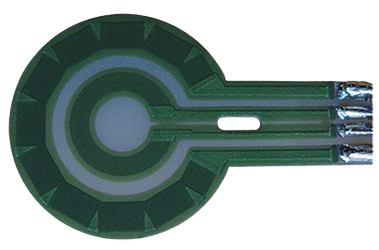

Aluminum Nitride (AlN) Heater Plates

High thermal conductivity makes AlN an excellent choice where fast response or high levels of uniform temperatures are required. A clean, non-contaminating heat source, AlN’s high thermal conductivity prevents cracking.

Download Datasheet Pdf, 2 MB.

  • High-temperature heater up to 1000°C
  • Excellent thermal conductivity and uniformity.
  • Hard, dense, non-porous, high purity substrate.
  • Superior moisture and chemical resistance.
  • Excellent size and shape capability.
  • Precise, repeatable pattern and distributed wattage.
Overview Options Specifications Applications

Precision engineered to fit tight spaces and tolerances, Thick Film AlN heaters are found in the most critical medical, aerospace and commercial applications. Fast ramp-up time, low leakage and excellent dielectric properties make this our highest-performing thick film alternative.

  • For high temperature applications up to 1000 °C
  • Power densities to 155 W/cm2 (1000 W/in2)
  • Superior thermal conductivity (220 W/mK)
  • Excellent dielectric properties
  • Low coefficient of thermal expansion
  • Low mass: fast temperature ramp up and cool down
  • Low leakage current
  • No out gassing with inorganic systems

Engineering services and consultation are available on every custom heating element order. Contact a specialist today for details.

Configuration Options

  • High temperature glass and conventional UV-cure resin-based solder masks or encapsulants.
  • Design single- or double-sided circuits, with one or two layers per side.
  • Larger, uneven shapes and three-dimensional configurations are possible with customization.

Wattage

  • Custom watt density designs available for added efficiency and control.
  • Multiple zone heating for greater control in target areas.
  • Distributed Wattage can be used to compensate for heat loss and create uniform temperature in application.

Voltage

  • Custom designed to operate from 2 to 480 volts; including dual voltage.
  • Functions with AC and DC voltage sources.

Surface Mount Sensors and Thermostats

  • Printed RTDs or surface-mount thermistors for direct, on-board temperature feedback and control, as well as more complex heater system assembly.
  • Large selection of thermostats and thermal fuses designed to provide maximum efficiency for your application.

Connecting Leads

  • Broad range of connection schemes available, including wire harness.
  • Custom connection solutions can be co-engineered with customer's design.
  • Power leads soldered directly to board or mechanically secured.

Maximum Temperature:

1000 °C
1832 °F

Maximum Watt Density:

155 W/cm²
1000 W/in²

Thermal Conductivity:

220 W/mK

Ramp-up Rate:

300°C/sec
572°F/sec

Density:

3.26 g/cm³
203.52 lb./ft³

Substrate Thickness:

1.27 mm x 5.08 mm
0.05"-0.20"

Typical Maximum Dimensions:

127 mm x 279 mm
5" x 11"

For custom solutions outside these specifications, contact a Heatron specialist.

Medical & Life Sciences

Dialysis, CPAP, DNA Analysis and Testing, Blood Diagnostics, Surgical Devices, Vessel Sealer, Blood/Fluid Warming, Instrument Warming, MRI Equipment, Temperature Therapy, Sterilization

Aviation & Transportation

Instrumentation, Personal Comfort, De-Icers, Over the Road Truck and Railcar Freeze Protection, Oil and Battery Heating, Auto and Motorcycles

Security

Chemical Detection, Explosives Detection, Alcohol Detection, Cameras

Food Service

Warming Cabinets, Display Shelves, Prep Stations, Heated Dishware, Fryer Systems, Grilling Platters, Appliances

Printing

3-D Printers, Laser Printers, Card Printers, Thermal Printers, Commercial and Industrial Printers

Industrial

Packaging Lines, Electronic Enclosures, Freeze Protection, Motor Heaters, Plastic Fabrications, Water Heating

Semiconductor

High Temperature Burn-In Boards and Testing Equipment, Wafer Chuck Heaters, Water Heating
